Bin Lift Systems: High Level Automatic

OmniDEKA

Optimises tailgate volume and minimises packing cycles in high density collections



OmniDEKA (E)

High level electric lift to help optimise tailgate volume and reduce packing cycles

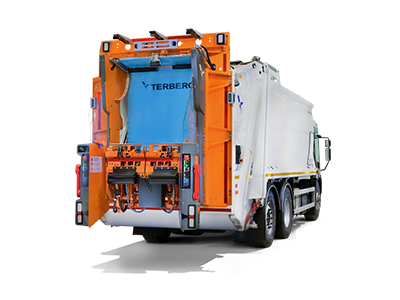

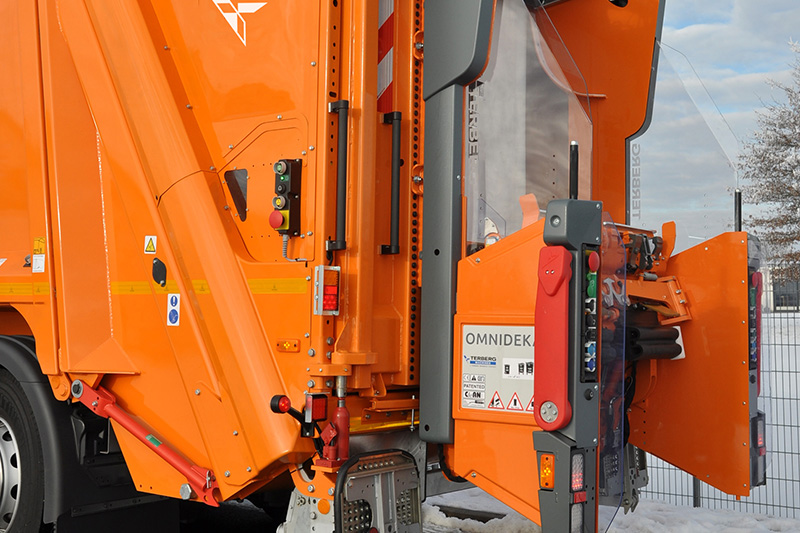

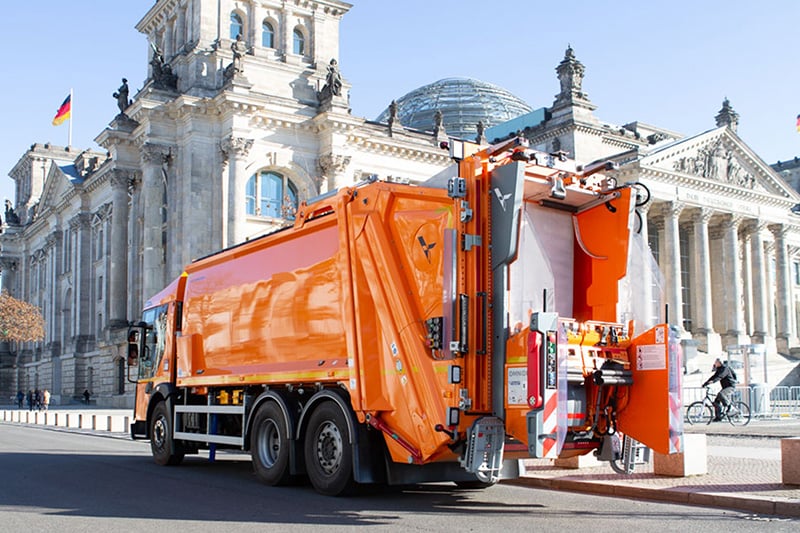

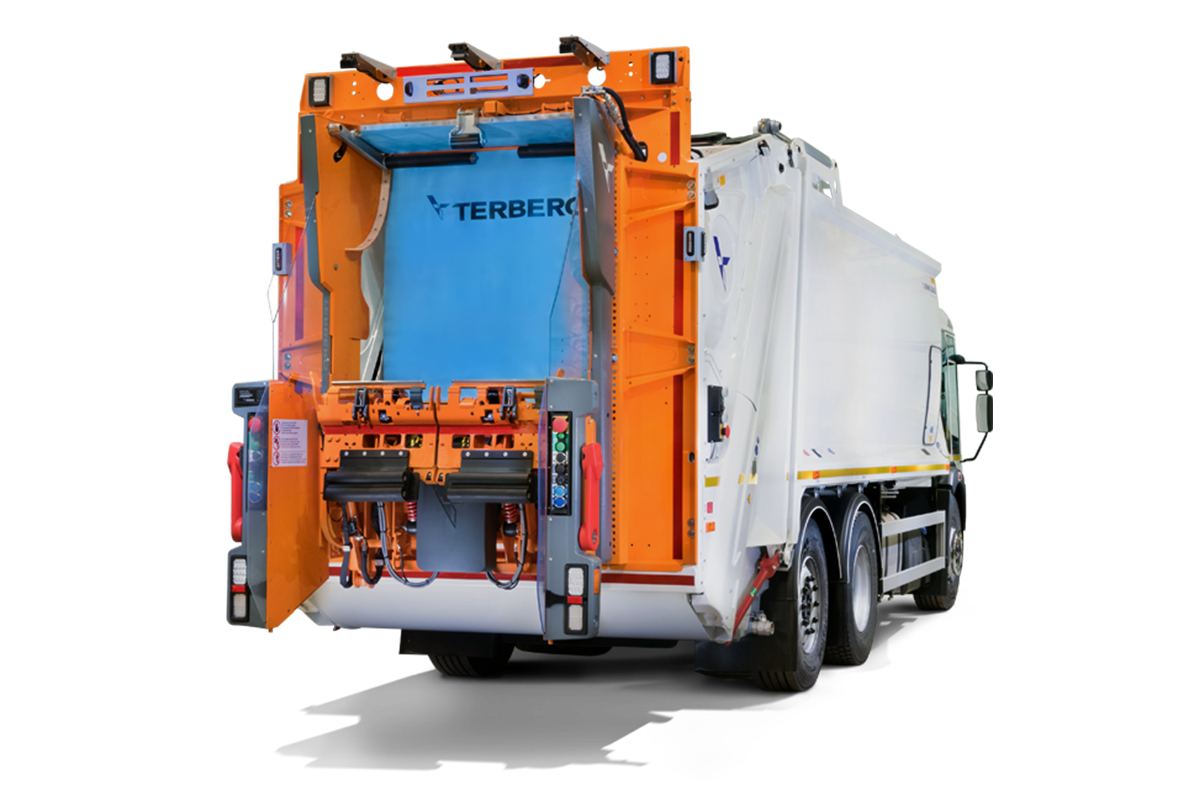

OmniDEKA

Introducing OmniDEKA, the result of intensive development from the ground up to provide a fresh take on how an automatic high-level binlift should be built.

OmniDEKA comes packed with functionality, flexibility and features, all built upon a foundation of years of experience, generations of bin lifts and listening to customer feedback.

OmniDEKA is our front line high level automatic split bin lift and combines all of the proven features of previous high level lifts together with a considerable number of innovative new features to give you better efficiency, higher levels of safety and lower cost of operation.

OmniDEKA offers greater flexibility than ever before to suit a variety of applications, depending on the RCV body variant, mounting heights from 1150mm up to a maximum height of 1675mm are possible.

The OmniDEL is the best available low level automatic solution for all RCV bodies including our Olympus range of RCVs.

Being a high-level lift, the OmniDEKA, especially when combined with our Olympus RCV, offers a superb tailgate swept volume to minimise the number of packing cycles and to maximise efficiency via the twin split lifting chairs that seamlessly switch between two wheel bin collection in high volume, high density urban areas and 4-wheel commercial containers. The dynamic split catcher bar operates automatically as required and moves back to its home position following container discharge. Additionally, OmniDEKA cleverly stores Kinetic energy during the lifting cycle to provide an energy free chair return under gravity, which in turn reduces noise, saves energy and keeps wear and tear to a minimum

The OmniDEKA represents the ideal high level automatic solution for our Olympus range of RCVs along with other RCV bodies.

SPECIFICATIONS

  • 2-wheel containers 6-7 sec. 4-wheeled 10-12 sec
  • Handling Capacity:  170kg (split) / 750kg (linked)
  • Noise Level: < 61 dB(A)
  • Mounting Method: DIN Frame
  • Safety: CE machinery directive certification, EN 1501.1 & EN 1501.5
  • Operation Mode: Automatic & Manual
  • Weight: 650 kg
  • Hydraulic Requirements: ideal 40 l/min., maximum 60 l/min., 180 bar
  • Auto-Gather: Yes
  • Diagnostic Display: Yes

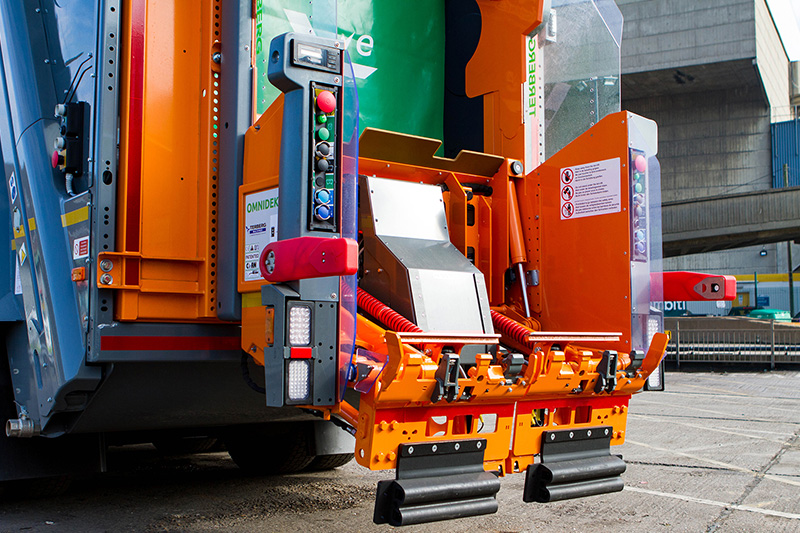

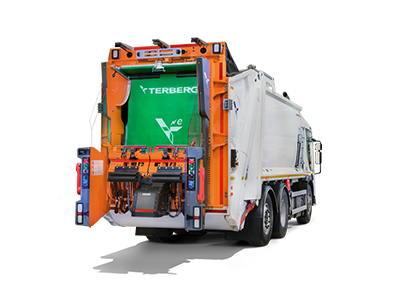

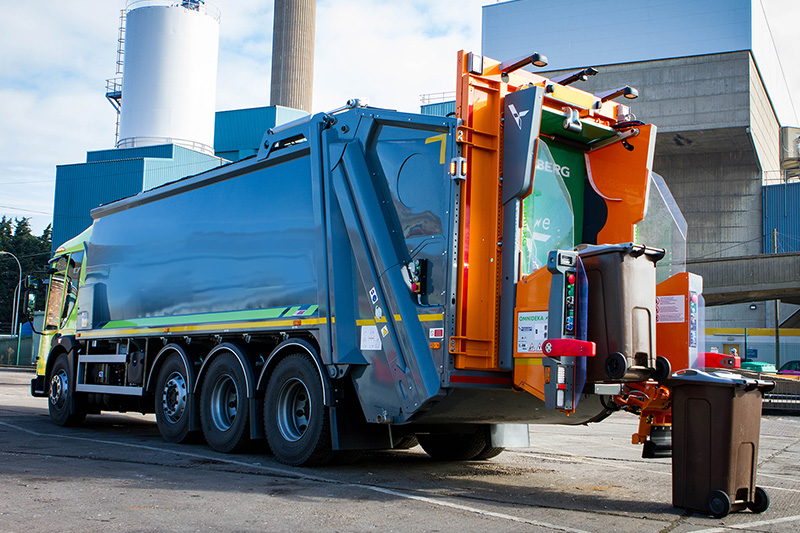

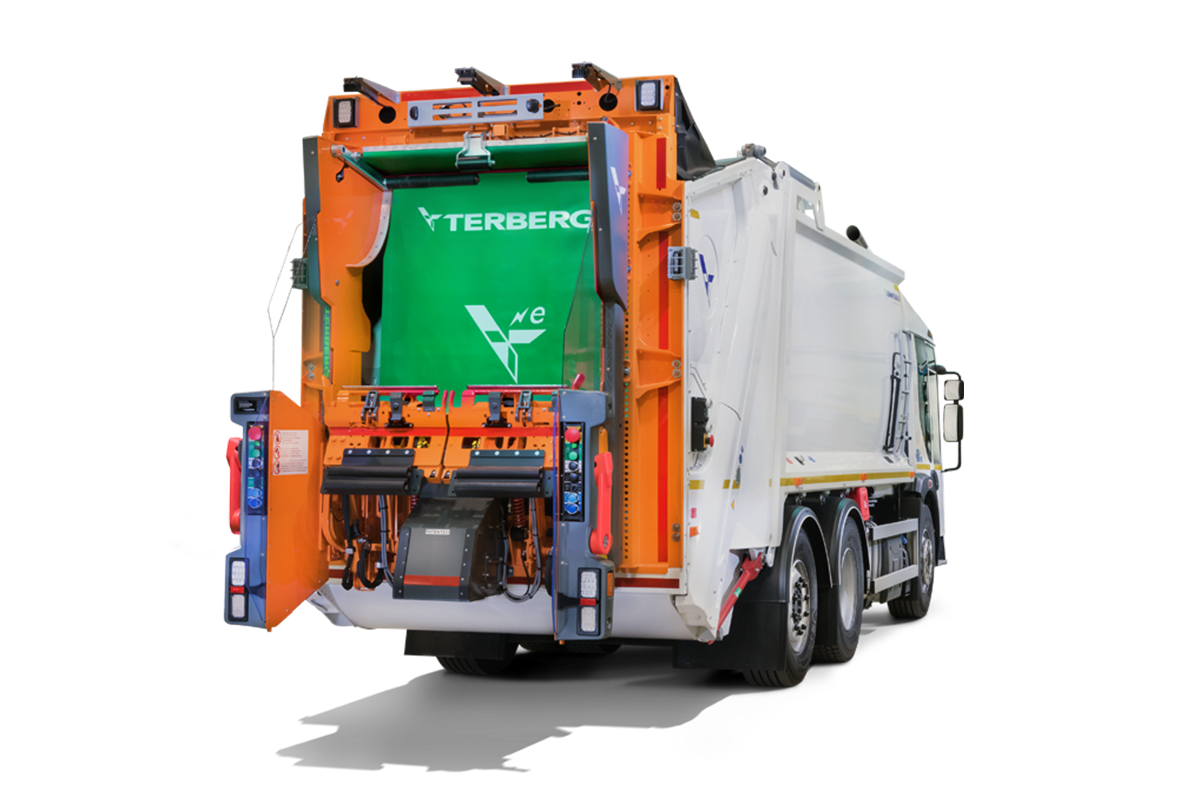

OmniDEKA (E)

The OmniDEKA (E) is the electrically powered version of the OmniDEKA. With all the great features of its hydraulic brother but only requiring a 24v connection to the vehicle. Its low noise rating makes it one of the quietest bin lifts available.

Just like the OmniDEKA, our low voltage, low noise electric OmniDEKA (E) is the product of some innovative thinking from ground up to deliver a high level automatic electric bin lift solution. OmniDEKA (E) comes packed with the same functionality, flexibility and features of the regular OmniDEKA but offers significant noise and emission reductions thanks to our superb 24v electric drive system that requires no additional engine revs during operation.

OmniDEKA (E) is a customer favourite and combines all of the proven features of previous high level lifts together with a considerable number of innovative new features to give you better efficiency, higher levels of safety and lower cost of operation.

OmniDEKA (E) offers greater flexibility than ever before to suit a variety of applications, depending on the RCV body variant, mounting heights from 1150mm up to a maximum height of 1675mm are possible.

Being a high-level lift, the OmniDEKA (E), especially when combined with our Olympus RCV, offers a superb tailgate swept volume to minimise the number of packing cycles and to maximise efficiency via the twin split lifting chairs that seamlessly switch between two wheel bin collection in high volume, high density urban areas and 4-wheel commercial containers. The dynamic split catcher bar operates automatically as required and moves back to its home position following container discharge.

The OmniDEKA (E) represents the ideal high level automatic solution with the added benefit of low noise levels for our Olympus range of RCVs along with other RCV bodies.

OmniDEKA (E) Electric Bin Lift System
SPECIFICATIONS

  • 2-wheel containers 6 - 7 sec. 4-wheeled 10-12 sec
  • Handling Capacity:  170kg (split) / 750kg (linked)
  • Noise Level: < 57dB(A)
  • Mounting Method: DIN Frame
  • Safety: CE machinery directive certification, EN 1501.1 & EN 1501.5
  • Operation Mode: Automatic & Manual
  • Weight: 680 kg
  • Hydraulic Requirements: Self-contained system on binlift
  • Auto-Gather: Yes
  • Diagnostic Display: Yes
