Dynamic Weighing Solutions : Weighing only

TMDW9020

THE NEXT GENERATION OF CERTIFIED DYNAMIC WEIGHING

The next generation of certified dynamic weighing from Terberg (TMDW) provides a simple and reliable solution to meet all requirements for container weighing. Designed and developed in-house for perfect integration with our entire range of market-leading bin lifts.

By accurately measuring weights of individual bins and different waste streams, the TMDW provides the insight you need to make informed business decisions. It also increases safety by automatically rejecting overweight bins and the cumulative weight function prevents vehicle overloading.

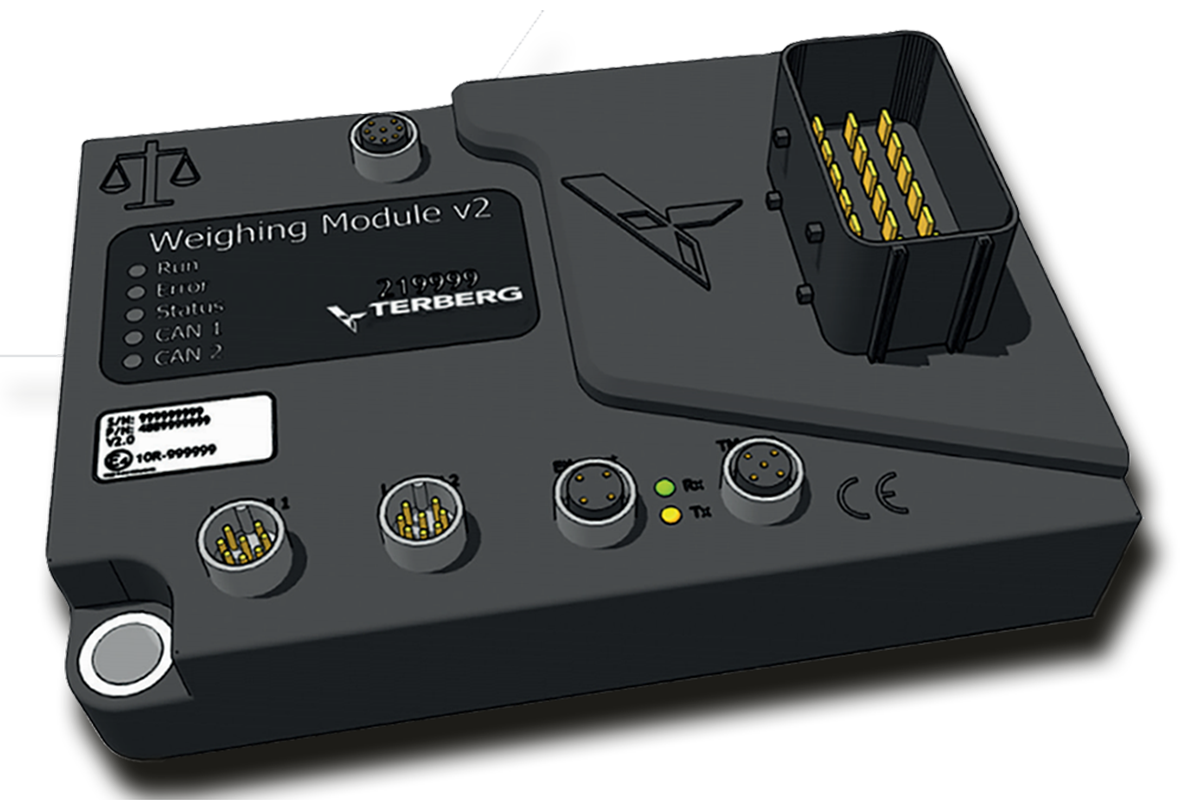

The TMDW uses CANbus interface with the chassis and lift, communicates via 4G, supports ‘stop list’ functions and it is compatible with most RFID tag technologies making it simple to use.

SPECIFICATIONS

  • Dynamic: TMDW weighs during lifting cycle with zero impact on cycle times
  • Accurate: Each bin is weighed 80 times in 0.5 seconds
  • Market leading resolution: Two wheeled bins can be weighed with as little as 0.5kg content
  • Certified: Approved to MID 204/22/EC and certified as Class Y(b) for pay-by-weight operations
  • Added Safety: Automatically rejects overweight bins and prevents vehicle overloading
  • Robust: Smart design minimises damage

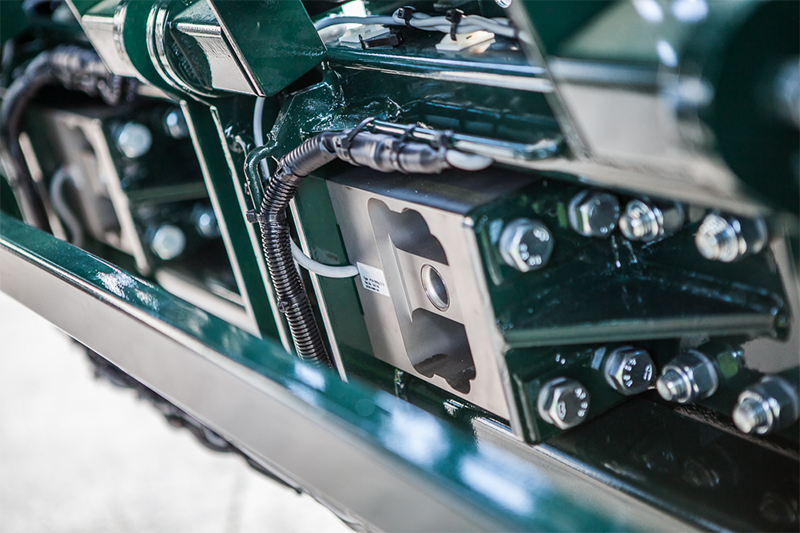

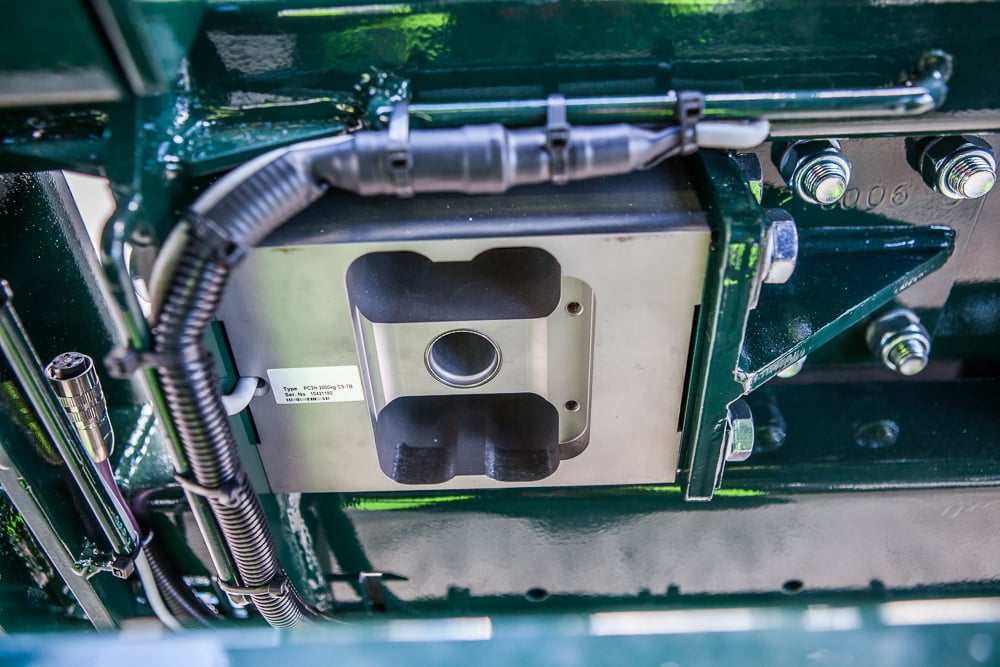

TMDW uses the most robust load cells in the marketplace, made from stainless steel for extra protection. Our load cells can handle impact up to 6,000kg without being damaged. In addition, the bin lift itself is designed to protect the load cells.

Weighing USP dummy.jpg



TMDW can be verified by Terberg Matec UK prior to delivery ensuring end users can get straight to work as soon as the system is delivered.




Our integrated bin lift weighing provides a turn-key solution with one single point of contact for sales and the full Terberg after-sales service.







PROVIDING THE UK WASTE AND RECYCLING INDUSTRY WITH ROBUST, RELIABLE, EFFICIENT AND INNOVATIVE ECO-TECHNOLOGY
